Tutorials - Voice

By Gramps and LuxyCeremy Last updated: June 23^rd, 2026

This tutorial covers adding Steam Voice chat to your game instead of just typing away mid-game. This example is based partially on this Github repo for networked voice chat in Godot and Valve's SpaceWar example. There are additional ideas, details, and such from cool people Punny and ynot01.

Relevant GodotSteam classes and functions

Note

You may want to double-check our Initialization tutorial to set up initialization and callbacks functionality if you haven't done so already.

Preparations

First we will set up a bunch of variables and a constant that will get used later on:

const SAMPLE_RATE: int = 48000

var current_sample_rate: int = SAMPLE_RATE
var voice_playback: AudioStreamGeneratorPlayback = null

In our _ready() function we will add a call to setup_stream() which will create our AudioStreamPlayer used to hearing the voice data. The setup_stream() function should look something like this:

func setup_stream() -> void:
    # Optionally we can get the sample rate from Steam
    # current_sample_rate = Steam.getVoiceOptimalSampleRate()

    var voice_stream_player := AudioStreamPlayer.new()
    add_child(voice_stream_player)
    voice_stream_player.stream = AudioStreamGenerator.new()
    voice_stream_player.stream.mix_rate = current_sample_rate
    voice_stream_player.play()
    voice_playback = voice_stream_player.get_stream_playback()

You can also get Steam's assumed optimized sample rate by calling getVoiceOptimalSampleRate() and placing it before creating our AudioStreamPlayer. You could also place a toggle in your game's settings / options to use it upon request.

Recording Voice

So how do we actually get our voice data to Steam? Like most games, you will probably want to offer both open mic and press-to-talk options. For our example we will create two buttons, one for each option. Both buttons will call the same record_voice() function too:

@onready var press_to_talk: Button = %PressToTalk
@onready var toggle_open_mic: Button = %ToggleOpenMic


# Add signals for those new buttons
func _ready() -> void:
    ...
    press_to_talk.button_down.connect(record_voice.bind(true))
    press_to_talk.button_up.connect(record_voice.bind(false))
    toggle_open_mic.toggled.connect(record_voice)

We could also implement this behavior as a hotkey instead. Just add a new variable to keep track of the open mic status called is_open_mic and then add two new input actions: voice_toggle and voice_talk. Then, when they are pressed (or released), we can call our same record_voice() function.

var is_open_mic: bool = false

func _input(event: InputEvent) -> void:
    if event.is_action_pressed("voice_toggle"):
        is_open_mic = not is_open_mic
        record_voice(is_open_mic)
    if event.is_action_pressed("voice_talk"):
        record_voice(true)
    if event.is_action_released("voice_talk"):
        record_voice(false)

Finally we have our actual record_voice() function which just swaps between startVoiceRecording() and stopVoiceRecording(). We will also called setInGameVoiceSpeaking() to suppress any sounds or such coming from the Steam client.

func record_voice(is_recording: bool) -> void:
    # If talking, suppress all other audio or voice comms from the Steam UI
    Steam.setInGameVoiceSpeaking(steam_id, is_recording)

    if is_recording:
        Steam.startVoiceRecording()
    else:
        Steam.stopVoiceRecording()

Now time to get the voice data we just sent.

Getting Voice Data

In our _process() function we will add the check_for_voice() function call:

func _process(_delta: float) -> void:
    check_for_voice()

This function basically just looks to see if there is voice data from Steam available. If so, it will grab it and send it off to be processed.

RPC SendingNetworking MessagesLoopback Testing

Using RPCs, we can just call our process_voice_data() function and pass the voice buffer over.

func check_for_voice() -> void:
    var available_voice: Dictionary = Steam.getAvailableVoice()

    if available_voice['result'] == Steam.VoiceResult.VOICE_RESULT_OK and available_voice['size'] > 0:
        var voice_data: Dictionary = Steam.getVoice()

        if voice_data['result'] == Steam.VOICE_RESULT_OK and voice_data['size'] > 0:
            # Here we pass the voice data off to the network
            process_voice_data.rpc(voice_data['buffer'])

Sending the data based on our Networking Message tutorial.

func check_for_voice() -> void:
    var available_voice: Dictionary = Steam.getAvailableVoice()

    if available_voice['result'] == Steam.VoiceResult.VOICE_RESULT_OK and available_voice['size'] > 0:
        var voice_data: Dictionary = Steam.getVoice()

        if voice_data['result'] == Steam.VOICE_RESULT_OK and voice_data['size'] > 0:
            # Here we pass the voice data off to the network
            Networking.send_message(0, {"voice": voice_data['result']})

Best used in your game's settings / options menu to test the player's voice audio.

func check_for_voice() -> void:
    var available_voice: Dictionary = Steam.getAvailableVoice()

    if available_voice['result'] == Steam.VoiceResult.VOICE_RESULT_OK and available_voice['size'] > 0:
        var voice_data: Dictionary = Steam.getVoice()

        if voice_data['result'] == Steam.VoiceResult.VOICE_RESULT_OK and voice_data['size'] > 0:
            # Here we directly pass the voice data to our processing function
            process_voice_data(voice_data['buffer'])

GodotSteam Version Differences

The above code requires some changes based on what version of GodotSteam you are using. getAvailableVoice() was removed from versions 4.16 to 4.18.1 (added back in 4.19) so we need to remove that function from the above code for this to work. We just skip down to getVoice() directly and tweaking one key from size to written, making it simply:

func check_for_voice() -> void:
    var voice_data: Dictionary = Steam.getVoice()

    if voice_data['result'] == Steam.VoiceResult.VOICE_RESULT_OK and voice_data['written']:
        # Pass the voice data along

Now time to process the data so we can actually hear it.

Processing Voice Data

Regardless of how we sent it or if we are just testing with loopback, this function will process the voice buffer and play it back in our voice_playback stream.

# If using MultiplayerPeer, we will add this line
# @rpc("any_peer", "call_remote", "unreliable")
func process_voice_data(voice_data: PackedByteArray) -> void:
    var decompressed_voice: Dictionary = Steam.decompressVoice(voice_data, current_sample_rate)

    if decompressed_voice['result'] == Steam.VoiceResult.VOICE_RESULT_OK and decompressed_voice['size'] > 0:
        var frames_to_push: PackedVector2Array = PackedVector2Array()
        frames_to_push.resize(decompressed_voice['size'] / 2)

        for i in range(0, decompressed_voice['size'], 2):
            var sample_int: int = decompressed_voice['uncompressed'].decode_s16(i)
            var amplitude: float = float(sample_int) / 32768.0
            frames_to_push[i / 2] = Vector2(amplitude,  amplitude)

        if voice_playback.get_frames_available() >= frames_to_push.size():
            voice_playback.push_buffer(frames_to_push)
        elif voice_playback.get_frames_available() > 0:
            voice_playback.push_buffer(frames_to_push.slice(0, voice_playback.get_frames_available()))

As noted, if you are using MultiplayerPeer to send your voice data, just uncomment that line above the function to use RPCs.

Troubleshooting

Choppy Voice

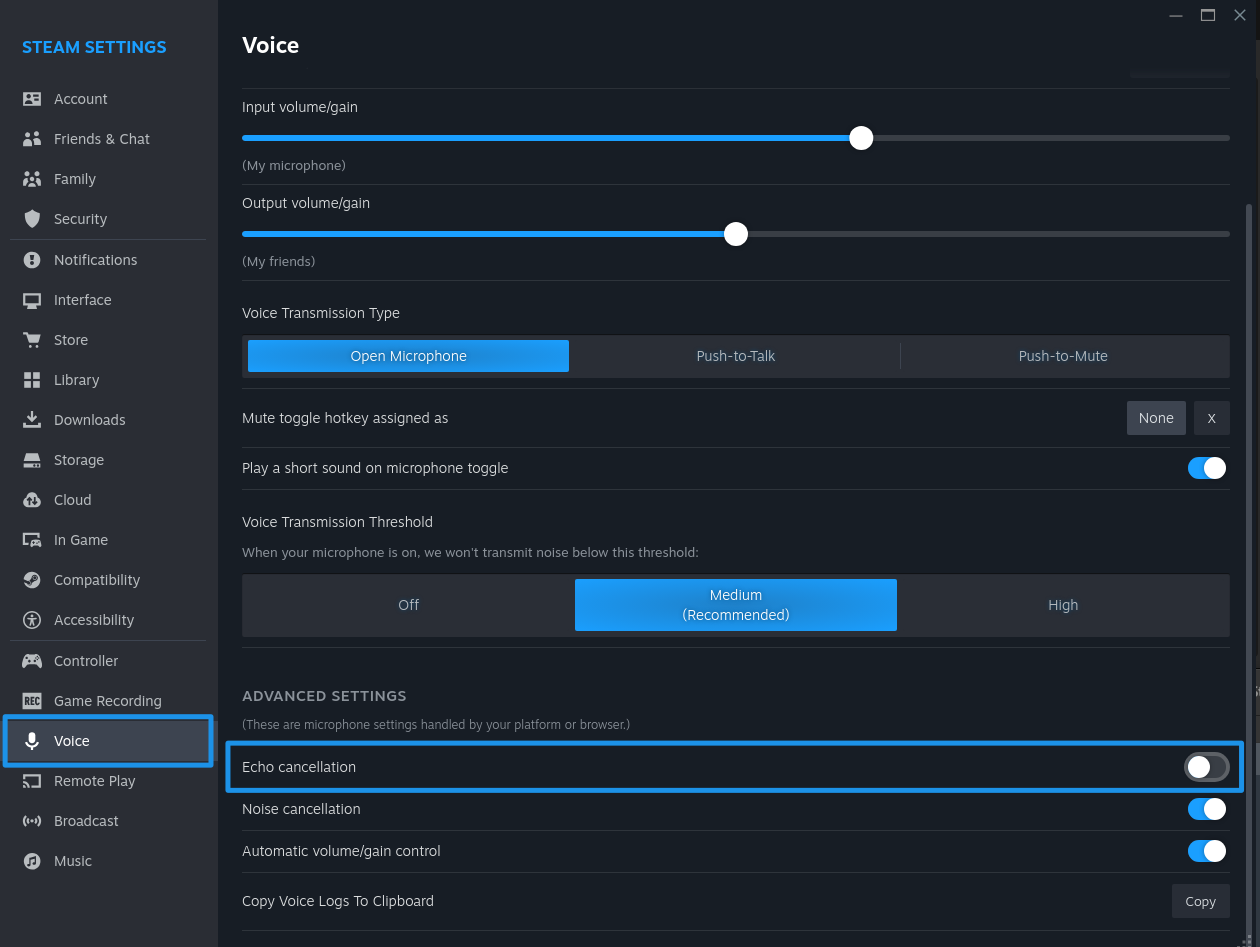

Though the newer version of this tutorial should fix the choppy audio issue, I was still getting choppy voice when testing in the Steam client's settings. For me, it seemed to be caused by Steam's echo cancellation setting; I just had to turn this off to get smooth audio going. You can find this in: Settings > Voice > Advanced Settings > Echo Cancellation

Disable Echo Cancellation
